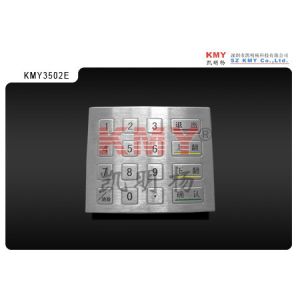

16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65

Dustproof Waterproof IP65 Stainless Steel 16 Keys Keypad 100x100mm Vending Machine Metal Numeric Keypad

Faceplate Dimensions(W×H):100×100mm

Product Introduction

1. KMY3502A is a stainless steel keypad with both numeric and function keys .

2. The layout could be any language and function keys could be customized .

3. Front mounting installation .

Application

Ø Check-in Kiosk

Ø Boarding Kiosk

Ø Info-Kiosk

Ø Internet Kiosk

Ø Medical Kiosk

Ø Industrial control platform

Ø Gaming machine

Ø Access control platform

Physical Features

Ø Keypad made of high quality stainless steel

Ø Customizable layout, dimension and installation design

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Ports for optional eight external function keys, beeper and guide light

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø IK Protection Class DIN EN 50102:IK07

Ø GW: 0.5KG

Environment Requirements

Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø Operating temperature range: 0℃‑ 45℃

Ø Storage temperature range: –25℃ - 65℃

Ø Maximum humidity in operating environment: 80%
